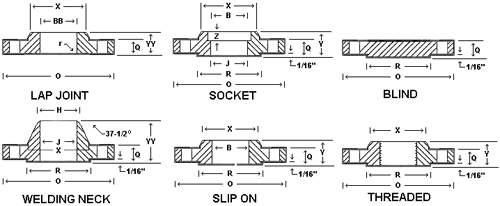

150 LB. FLANGES

Normal
pipe
size		 Outside
dia. of
flange		 Minimum
thickness
of flange		 Overall         Length Bolt
Circle		 No. and
Size of
Holes		 O.D. of
raised
face
Welding
neck		 Slip-on
& socket
welding		 Lap Joint
O Q Y Diam. No. dia. R
1/2 89 11.2 47.6 15.9 15.9 60.5 4 15 35
3/4 117 15.9 57.2 25.4 25.4 82.5 4 15 43
1 108 14.3 55.6 17.5 17.5 79.5 4 15 51
1.1/4 117 15.9 57.2 20.6 20.6 89.0 4 15 64
1.1/2 127 17.5 61.9 22.2 22.2 98.5 4 15 73
2 152 19.1 63.5 25.4 25.4 120.5 4 19 92
2.1/2 178 22.3 69.8 28.6 28.6 139.5 4 19 105
3 190 23.9 69.8 30.2 30.2 152.5 4 19 127
3.1/2 216 23.9 71.4 31.8 31.8 178.0 8 19 140
4 229 23.9 86.2 33.3 33.3 190.5 8 19 157
5 254 23.9 88.9 36.5 36.5 216.0 8 22 186
6 279 25.4 88.9 39.7 39.7 241.5 8 22 216
8 343 28.6 101.6 44.4 44.4 298.5 8 22 270
10 406 30.2 101.6 49.2 49.2 362.0 12 25 324
12 483 31.8 114.3 55.6 55.6 432.0 12 25 381
14 533 35.0 127.0 57.2 79.4 476.0 12 29 413
16 597 36.6 127.0 63.5 87.3 539.5 16 29 470
18 635 39.7 139.7 68.3 96.8 578.0 16 32 533
20 698 42.9 144.5 73.0 103.2 635.0 20 32 584
24 813 47.7 152.4 82.6 111.1 749.5 20 35 692
